How to Create Custom Tabs Using the Form Generator

1 min read

The Form Generator customises which tabs appear on lead profiles and the order they appear in. This guide covers adding a new tab and reordering existing ones.

Before you begin

You need admin access. There are several form generators in FranConnect and they all behave in roughly the same way — this guide uses the Sales Form Generator as the example.

What the Form Generator does

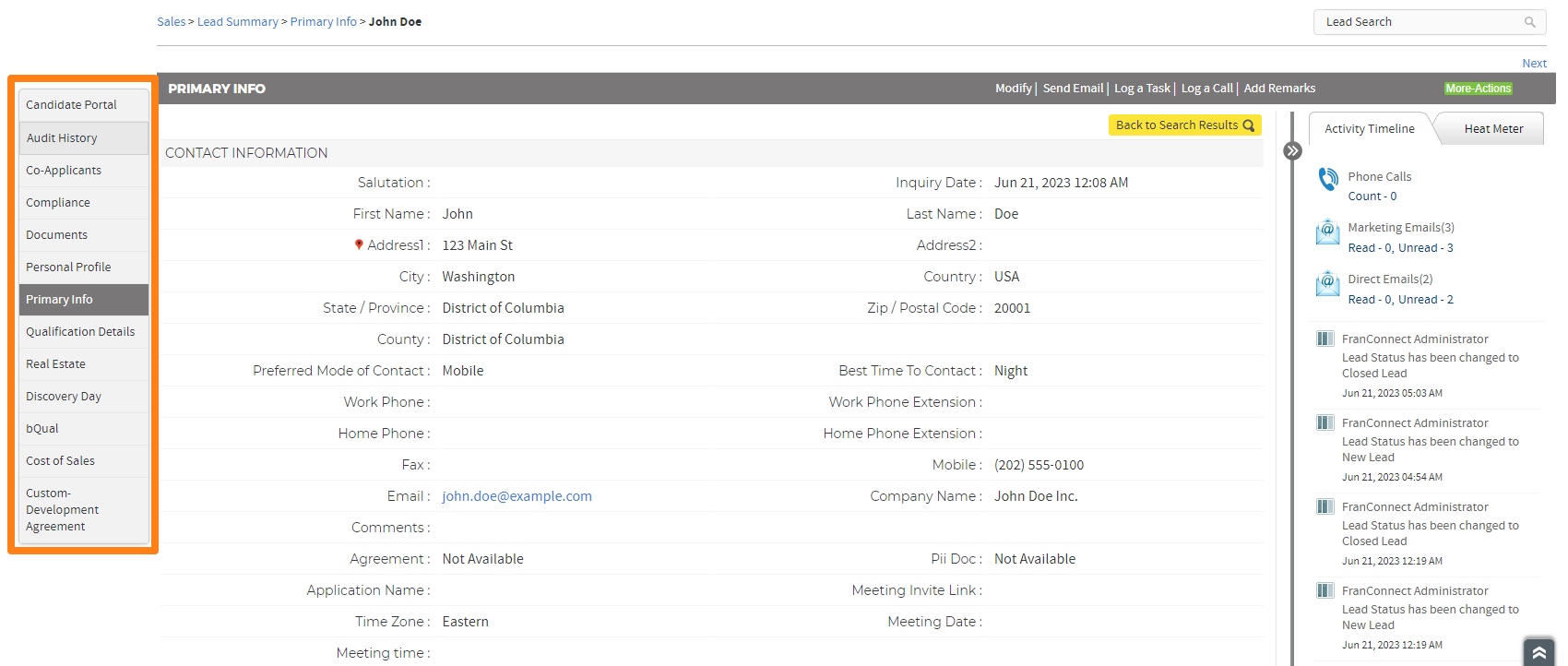

The Sales Form Generator customises the appearance of tabs on lead profiles in the Sales module — the tabs shown below.

Tabs displayed on a lead profile in the Sales module

Fig 1 — The tabs on a lead profile.

Step-by-Step Instructions

Follow these steps to create Custom Tabs Using the Form Generator

1

Open the Admin settings

Log into FranConnect and click the gear icon at the top of the page to open Admin.

Admin ⚙

Gear icon at the top of the page for Admin settings

Fig 2 — Click the gear icon.
2

Open Manage Form Generator

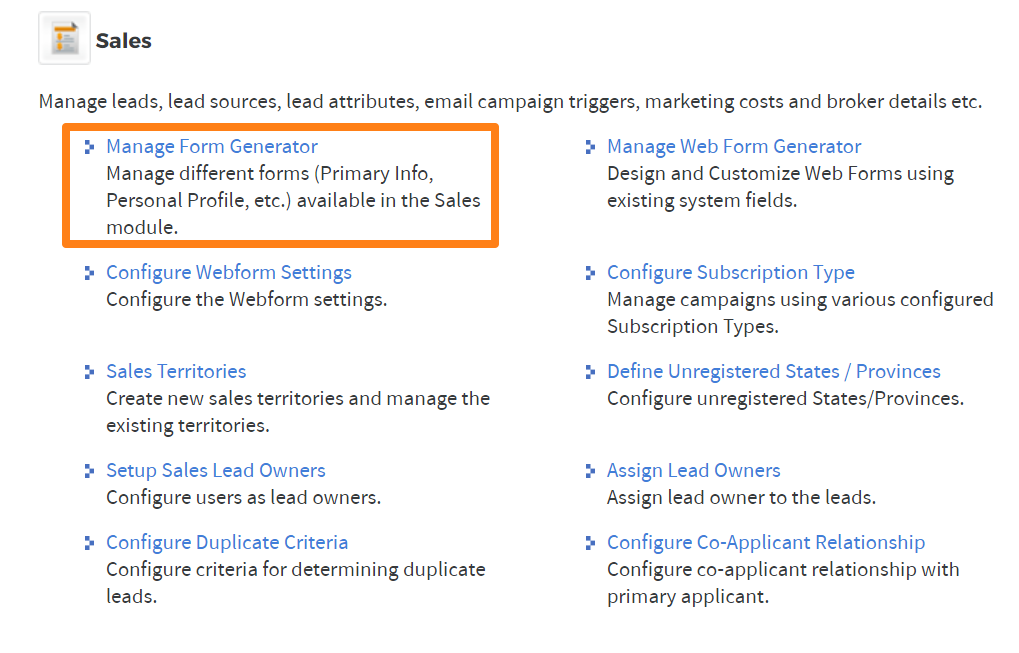

Click Sales on the left-hand sidebar, then Manage Form Generator.

Admin ⚙ › Sales › Manage Form Generator

Manage Form Generator option under Sales in the admin sidebar

Fig 3 — Manage Form Generator.

Read the instructions page carefully, then click Continue.

Form Generator instructions page with the Continue button

Fig 4 — Read the instructions, then Continue.
3

Add a new tab

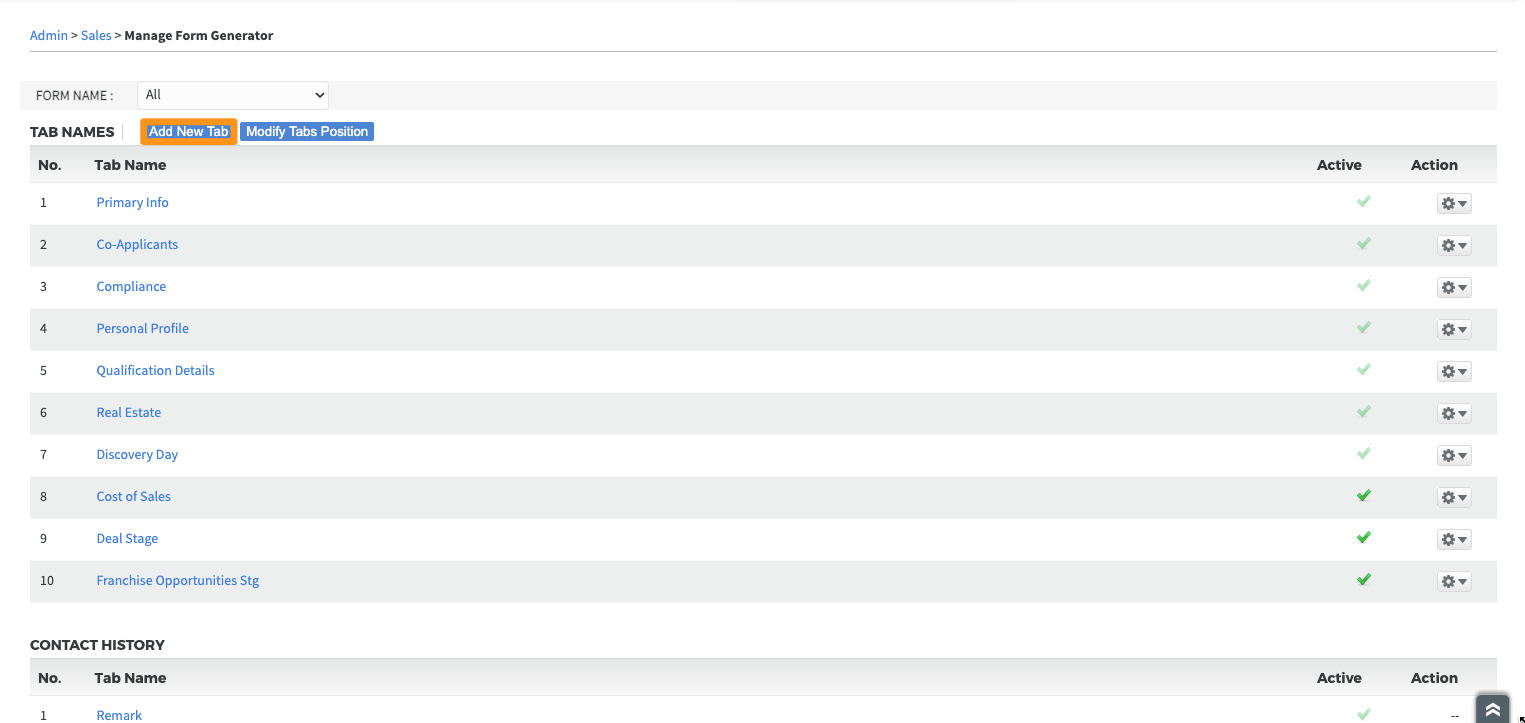

Click Add New Tab.

Add New Tab button on the Manage Form Generator page

Fig 5 — Click Add New Tab.

In the window that opens, give the tab a name, select the sub module and choose the permissions you want to give it. Confirm the details are correct and click Save.

Add New Tab dialog with name, sub module and permission fields

Fig 6 — Name the tab, pick the sub module and set permissions.
4

Change the order of tabs

Return to the Manage Form Generator page and click Modify Tabs Position.

Admin ⚙ › Sales › Manage Form Generator › Modify Tabs Position

Modify Tabs Position button on the Manage Form Generator page

Fig 7 — Click Modify Tabs Position.

Drag and drop the tabs into the order you want, then click Save at the bottom of the page.

Tab ordering page with draggable tab entries

Fig 8 — Drag the tabs into order, then Save.
